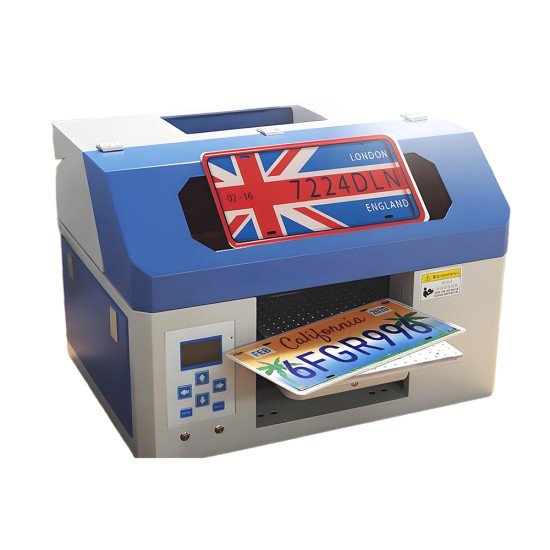

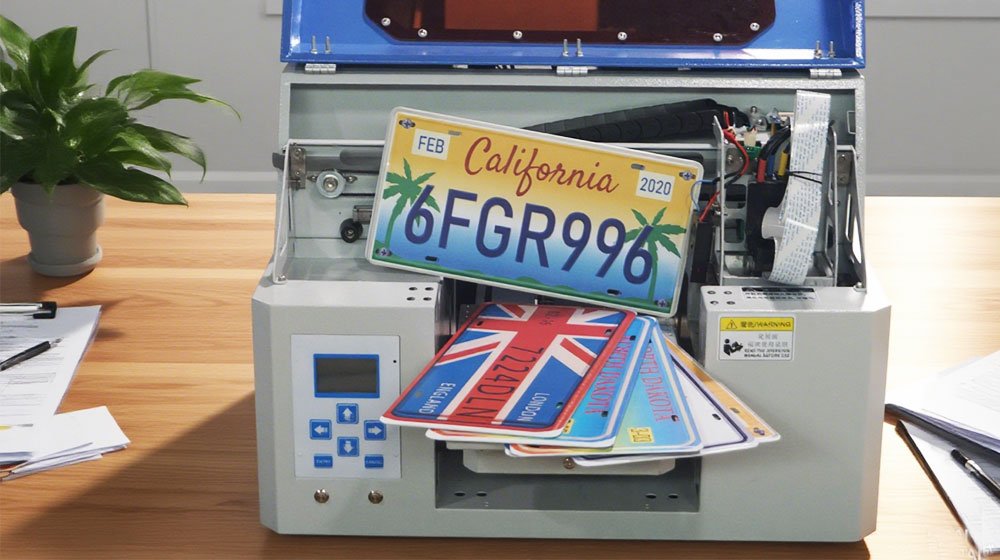

Smart Version A4 UV Printer
- Model: F23V4
- Weight: 38.00kg
- Dimensions: 65.00cm x 58.00cm x 47.00cm
Payment terms: Bank transfer and any available options
Lead time: 3-5 working days
MOQ: 1pcs
F23V4 Industrial A4 UV Printer – Compact & Versatile
The F23V4 Industrial A4 UV Printer is a small-format flatbed printer engineered for versatility and reliability. Despite its compact footprint, it integrates advanced UV technology normally found in larger models, making it an excellent fit for studios, home businesses, shops, and promotional printing. Built by an experienced manufacturer, this printer is designed for stable long-term performance with minimal downtime.
Key Highlights
Compact Design: True A4 size platform (200×300 mm) fits easily on a desk or counter.

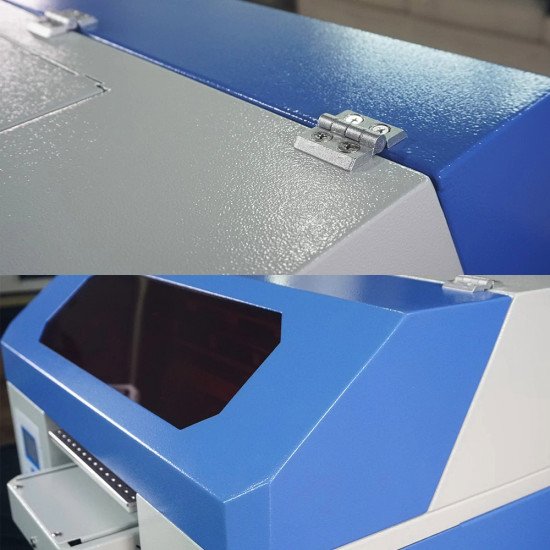

Industrial Durability: Rigid metal frame and cover for vibration-free, long-term stability.
Advanced Ink System: Automatic white ink circulation to prevent clogging.
Strong Cooling: High-efficiency wind cooling system extends component life.

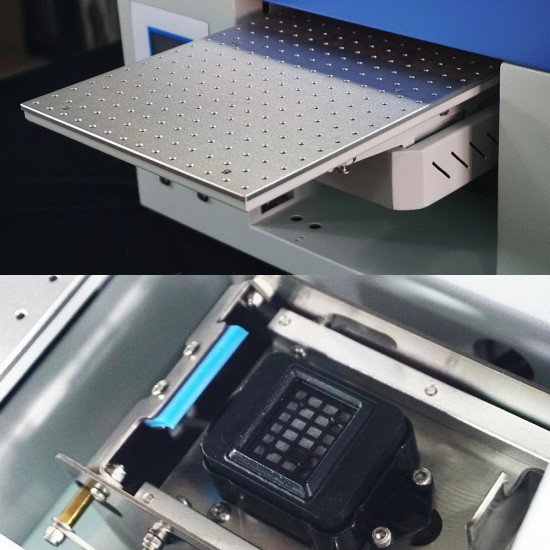

Precision Control: Servo-driven lifting tray with aluminum vacuum bed holds flexible materials firmly.
Ease of Maintenance: Industrial capping station and auto print-head flashing reduce manual cleaning.

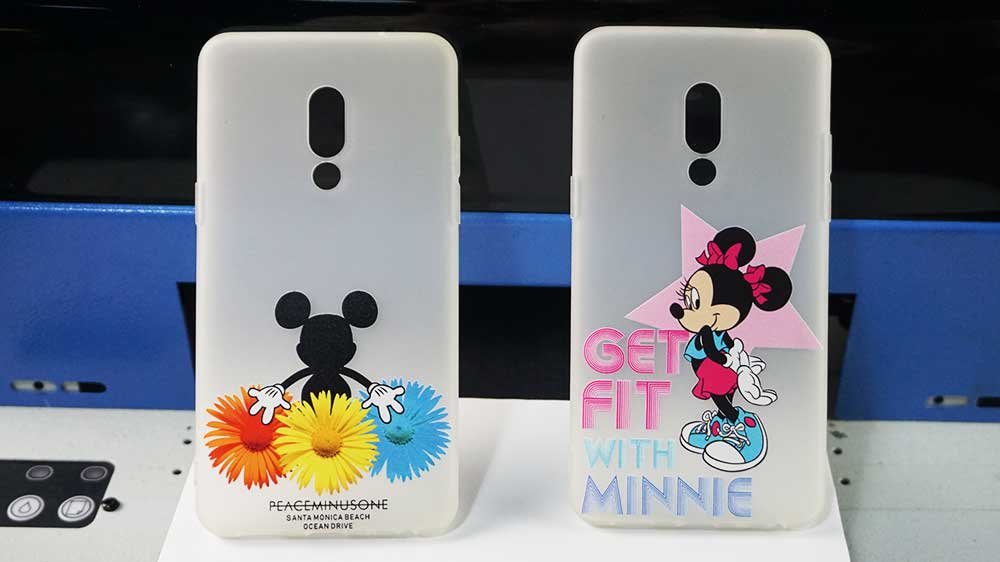

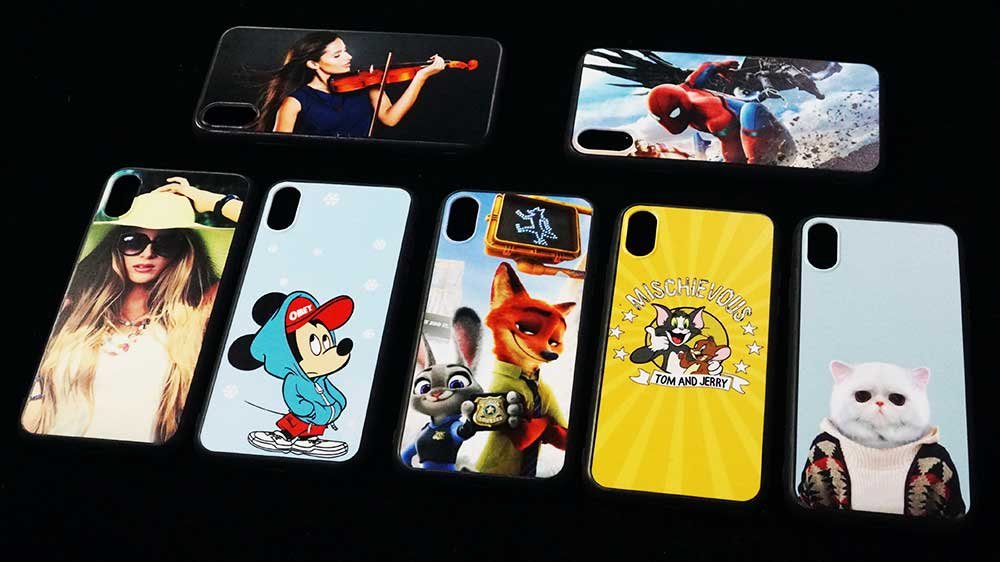

Multiple Effects: Supports full-color, white, embossed, and UV-DTF printing on diverse substrates.
Technical Specifications
| Item | Detail |
|---|---|
| Print Head | Epson TX800 / XP600 |
| Max Print Size | 200 × 300 mm (A4) |
| Print Height | 0–75 mm adjustable |
| Ink Channels | CMYK + 2 White |
| Ink Supply | Automatic White Ink Mixing |
| Cooling System | High-efficiency Wind Cooling |
| Interface | USB 2.0 |
| Print Speed | ~12 min for 200×300 mm image |
| Supported Effects | Color, White, Embossed, UV DTF |
| RIP Software | Compatible with Windows systems |
| Operating Conditions | 25–30 °C, 50 % humidity, dust-free |
| Power Input | AC 110/220 V, 50/60 Hz |
| Print Head Qty | 1 |
Frequently Asked Questions (FAQ)
Q1: What materials can the F23V4 A4 UV Printer handle?
A: It supports a wide range of rigid and semi-flexible substrates, including plastic, acrylic, wood, glass, leather, PVC, coated metal, and more.
Q2: Is special surface treatment required before printing?
A: Some non-porous materials may need a primer or coating to ensure optimal ink adhesion. Most coated surfaces print directly.
Q3: How difficult is daily maintenance?
A: Maintenance is straightforward. The automatic white ink circulation and print-head flashing reduce clogging. Routine nozzle checks and cleaning keep the printer stable.
Q4: Does it support embossed or raised effects?
A: Yes, by layering white or color ink, the printer produces embossed, textured finishes directly from the RIP software.
Q5: What operating system is required?
A: Windows (Win7/Win10 or later) is recommended for full RIP software compatibility.
Q6: What is the typical lifespan of the print head?
A: With proper maintenance and correct ink, many users achieve 12–18 months or more, depending on workload and environment.
Q7: Can it print directly on cylindrical items?
A: A rotary attachment is optional; with it, you can print on bottles, cups, and similar round items.
Q8: How large is the printer physically?
A: Compact enough for a desktop; exact external dimensions depend on protective covers but typically under 20 kg weight for easy placement.
